Cable Glands, Metallic (Nickel Plated Brass) & Polyamide (IP68 rating)

Trinity Touch is a leading manufacturer and exporter of single compression, UL approved cable glands in India. A wide Range of cable glands available in polyamide (Nylon) and metallic (nickel plated brass). Available in Metric, PG and Combination (Pg-Metric) Threads. Our cable glands are certified for IP68 rating. We Serve Delhi NCR, Mumbai, Pune, Chennai, Ahmedabad, Bengaluru, Hyderabad, Kolkata and Other All major locations in India.

Nickel Plated Brass

Polyamide

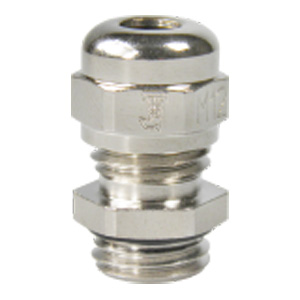

Nickel Plated Brass

Nickel-plated brass cable glands are especially designed for use in wind industry, manufacturing of machines, automotive Industry, solar energy, electric motors, generators, gear units, transportation.

Complete range of sizes.
Wide sealing and clamping range
Easy to install.
Integrated anchorage.
Metric and Pg thread available.

Technical Description
Threads Available	Metric & PG
Thread Sizes	M12 to M63 & PG7 to P48
Thread Length	Standard & Long
Temperature Range	-40°C / +100°C
Lemallar Insert	Polyamide
Sealing Ring & O-Ring	Nitrile Buna Rubber (NBR)
Certifications	UL, CE, IP68

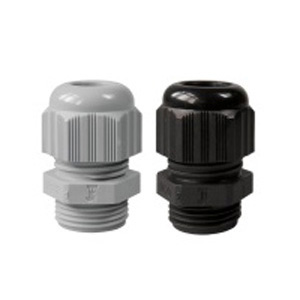

Polyamide

Polyamide cable glands are used in larges volumes on power panels, switches, control equipment, CCTV surveillance sytems, elevators, Lifts, parking systems and junction boxes.

Complete range of sizes.
Wide sealing and clamping range.
Easy to install.
Integrated anchorage.
Metric and Pg thread available.
Silver Grey, Light Grey and Black color.

Technical Description
Threads Available	Metric, PG & Combination (PG-Metric)
Thread Sizes	M12 to M63, PG7 to PG48 & PG7M12 to PG48M63
Thread Length	Standard & Long
Temperature Range	-40°C / +100°C
Flammability Rating	UL94-V2
Sealing Ring & O-Ring	Nitrile Buna Rubber (NBR)
Certifications	UL, RoHS, CE, IP68
Accessories	Screw Plug, Blanking Plug, Dust Cap, Locknut
